One Noded Nation
One Noded Nation
One Noded Nation
One Noded Nation
Open Access Platform for disaster prevention and crisis communication (physical and digital)
Open Access Platform for disaster prevention and crisis communication (physical and digital)
UX Design
Physical Design
Rapid Prototyping
Conceptual Design
Figma
Rhino 7
Keyshot
Phython
Adobe Suite
2021 – 2022
2021 – 2022
2021 – 2022
Diploma Project
Diploma Project
Diploma Project
HfG Offenbach, Prof. Frank Zebner
HfG Offenbach, Prof. Frank Zebner
HfG Offenbach, Prof. Frank Zebner
Overview
Overview
Emergencies, such as natural disasters, require people cooperate and to work together to ensure survival and mitigate damage.
The organisation takes on the role of an information platform, while rebuilding a digital infrastructure to patch communication network holes in crisis situations.
Emergencies, such as natural disasters, require people cooperate and to work together to ensure survival and mitigate damage.
The organisation takes on the role of an information platform, while rebuilding a digital infrastructure to patch communication network holes in crisis situations.
Tools
Tools
Figma
Rhinoceros 7
Adobe Illustrator
Adobe Photoshop
Adobe InDesign
Keyshot
Python
Figma
Rhinoceros 7
Adobe Illustrator
Adobe Photoshop
Adobe InDesign
Keyshot
Python
↘ Digital platform and expander node installation in situ

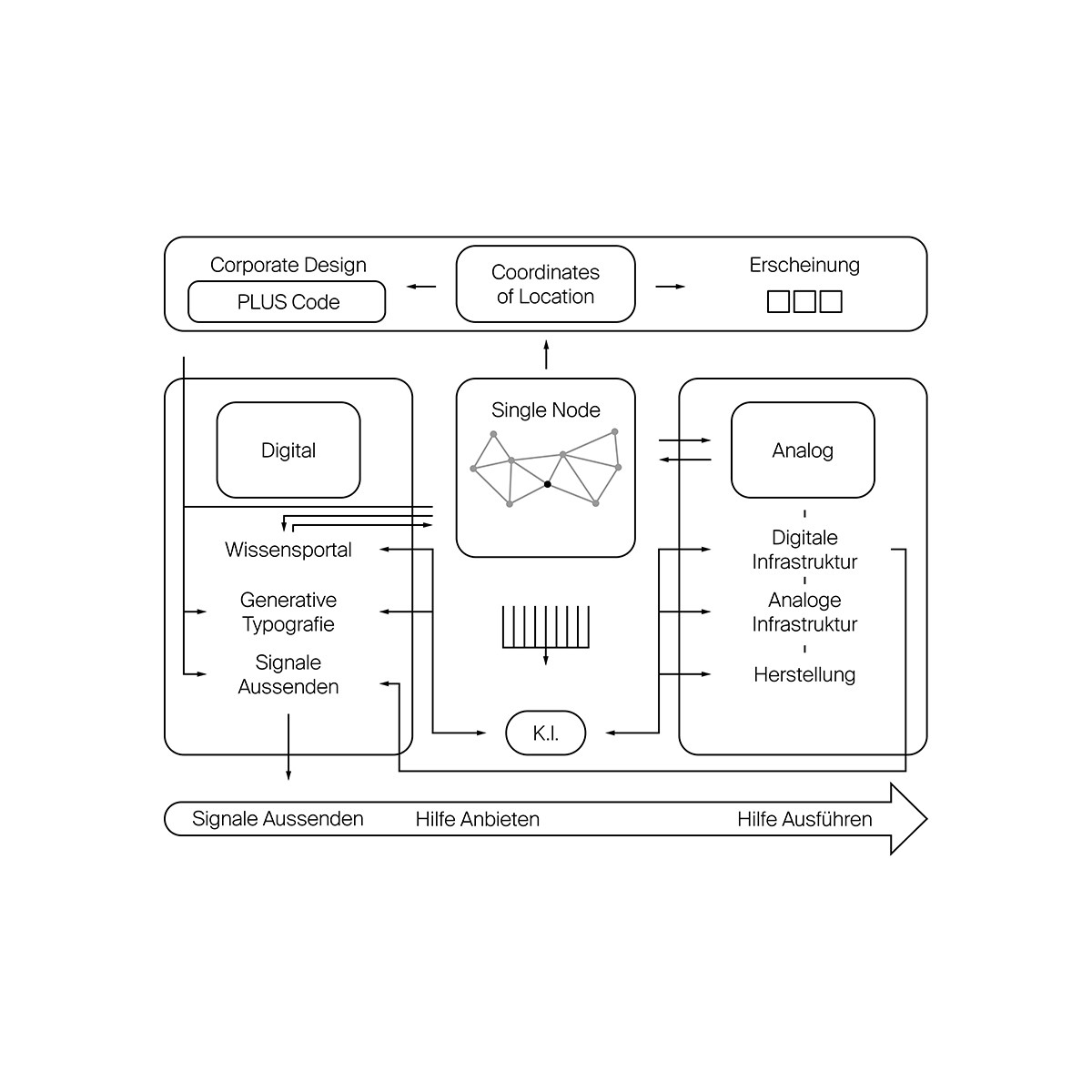

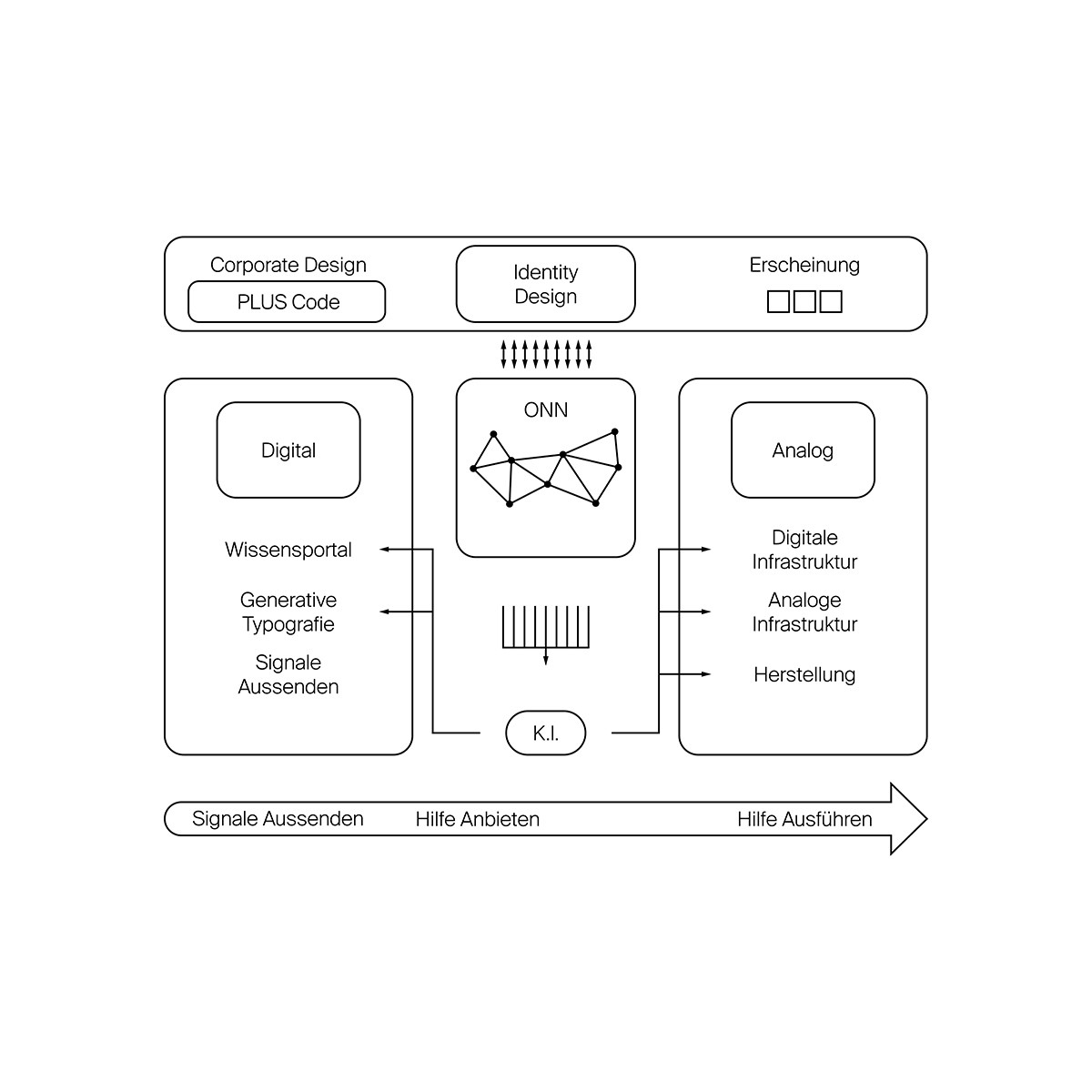

↘ Structure of the organisation in general
↘ Structure of the organisation in general
↘ Structure of the organisation for individual node
↘ Structure of the organisation for individual node
Concept
Concept
The concept of the design includes an open source organisation for prevention and preparation for natural disasters.
Actions and objects are designed and implemented locally by the members with the help of provided funds. In this way, everything that is needed can be produced locally. When help is needed, a signal can be sent out to neighbouring members.
The concept of the design includes an open source organisation for prevention and preparation for natural disasters.
Actions and objects are designed and implemented locally by the members with the help of provided funds. In this way, everything that is needed can be produced locally. When help is needed, a signal can be sent out to neighbouring members.
DESIGN & PROTOTYPE
DESIGN & PROTOTYPE
DESIGN &
PROTOTYPE
DESIGN & PROTOTYPE
Flags and Identity
Flags and Identity
A banner is capable of bolstering the identification and fostering a connection with the entity. The "banner" design derives from the "Tri-colore" system, the tri-tone banner employed by numerous nations, is computationally generated, while functioning as an internal location system.
A banner is capable of bolstering the identification and fostering a connection with the entity. The "banner" design derives from the "Tri-colore" system, the tri-tone banner employed by numerous nations, is computationally generated, while functioning as an internal location system.

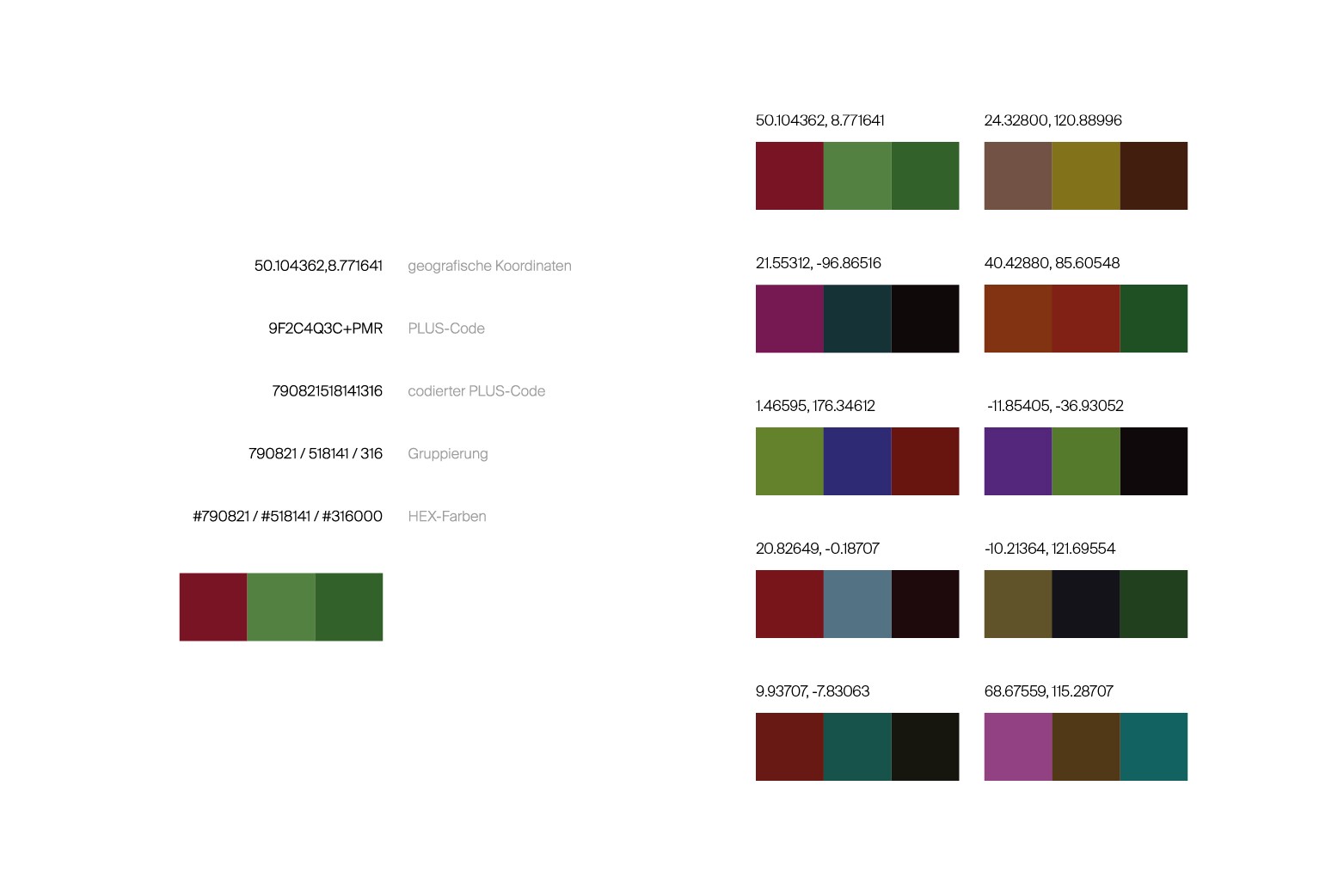

↘ Flag generation with self-designed encryption method
↘ Flag generation with self-designed encryption method
↘ Even in close proximity, the flag is always different
↘ Even in close proximity, the flag is always different
Digital Platform
Digital Platform
The digital platform for knowledge transfer, assistance and active exchange is also an important aspect of the project. As the use of smartphones and computers continue to increase and become more accessible, this already existing interface can be used to enter the portal.
The digital platform for knowledge transfer, assistance and active exchange is also an important aspect of the project. As the use of smartphones and computers continue to increase and become more accessible, this already existing interface can be used to enter the portal.

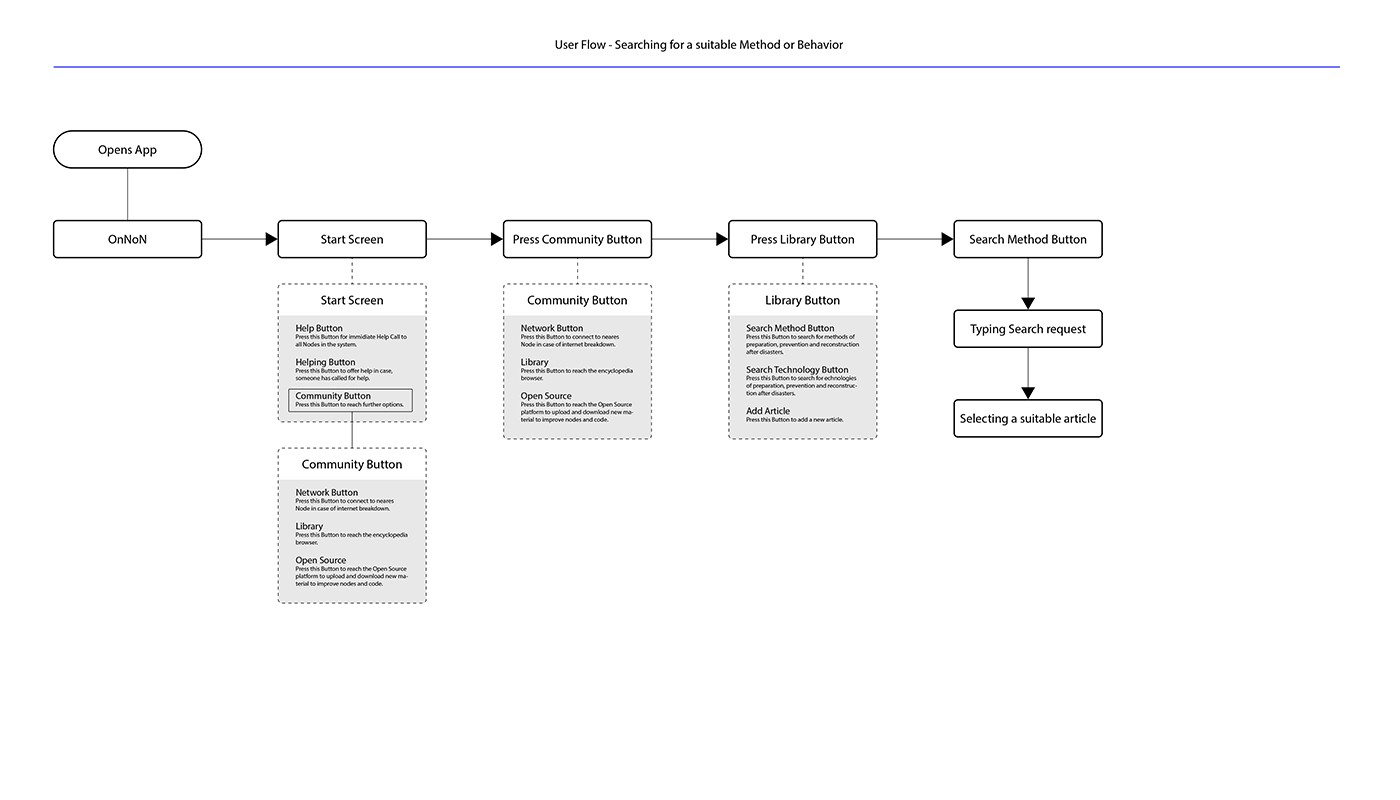

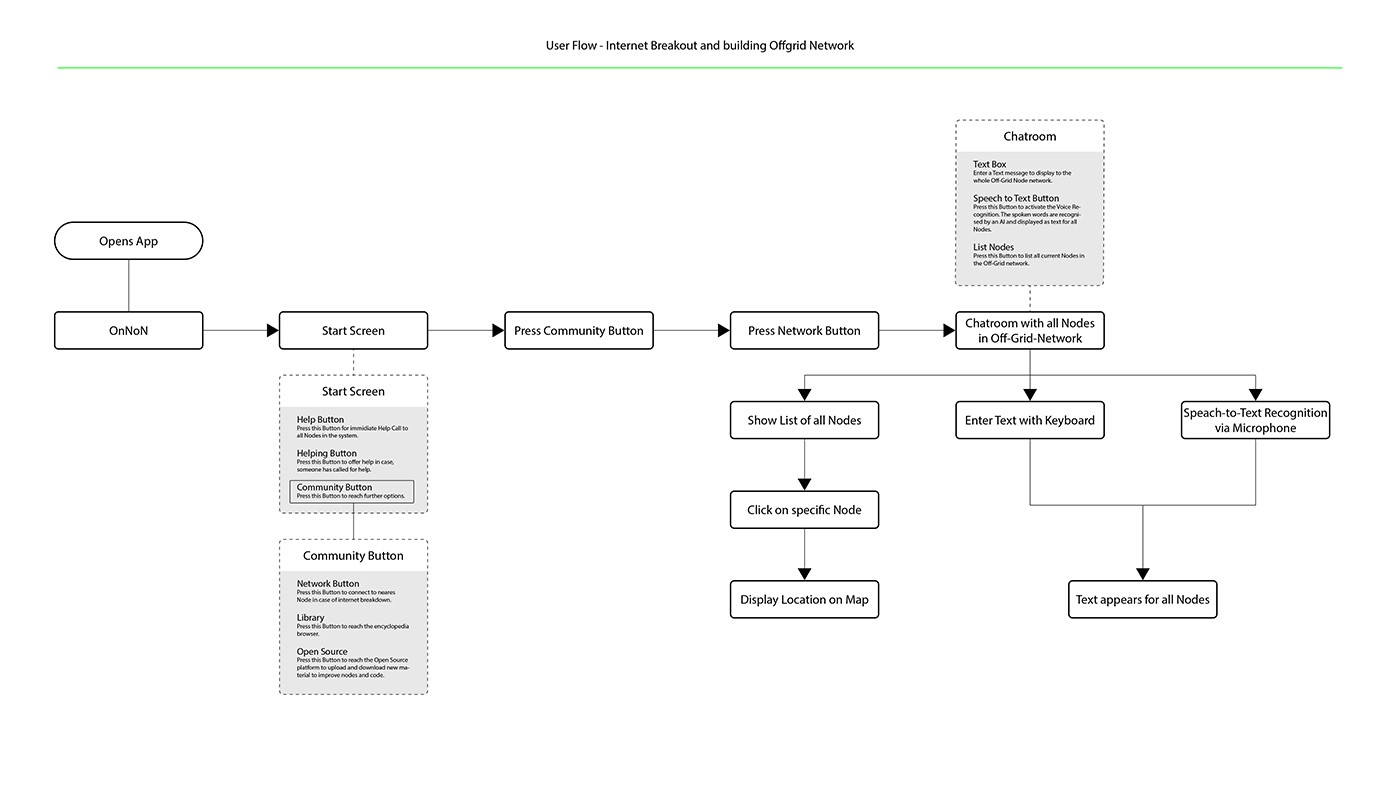

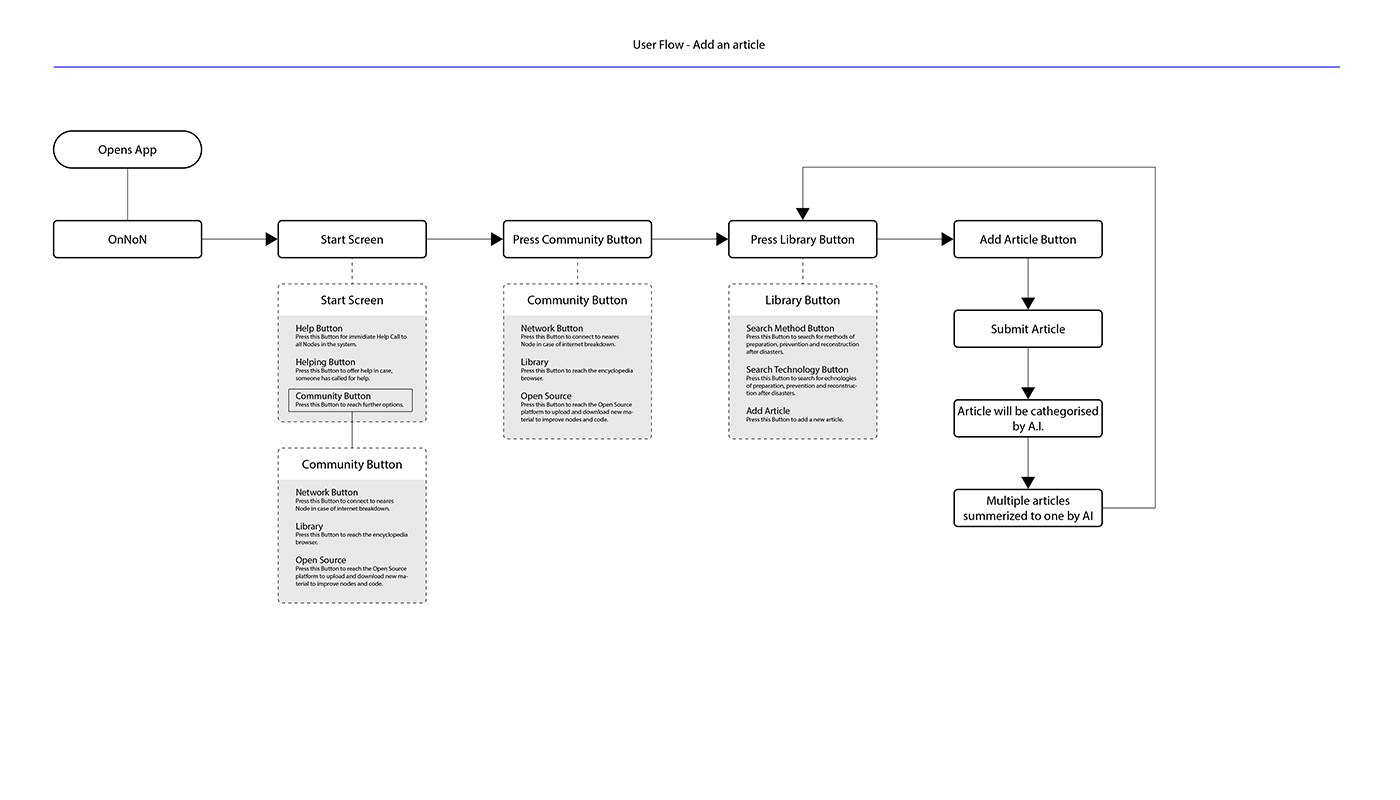

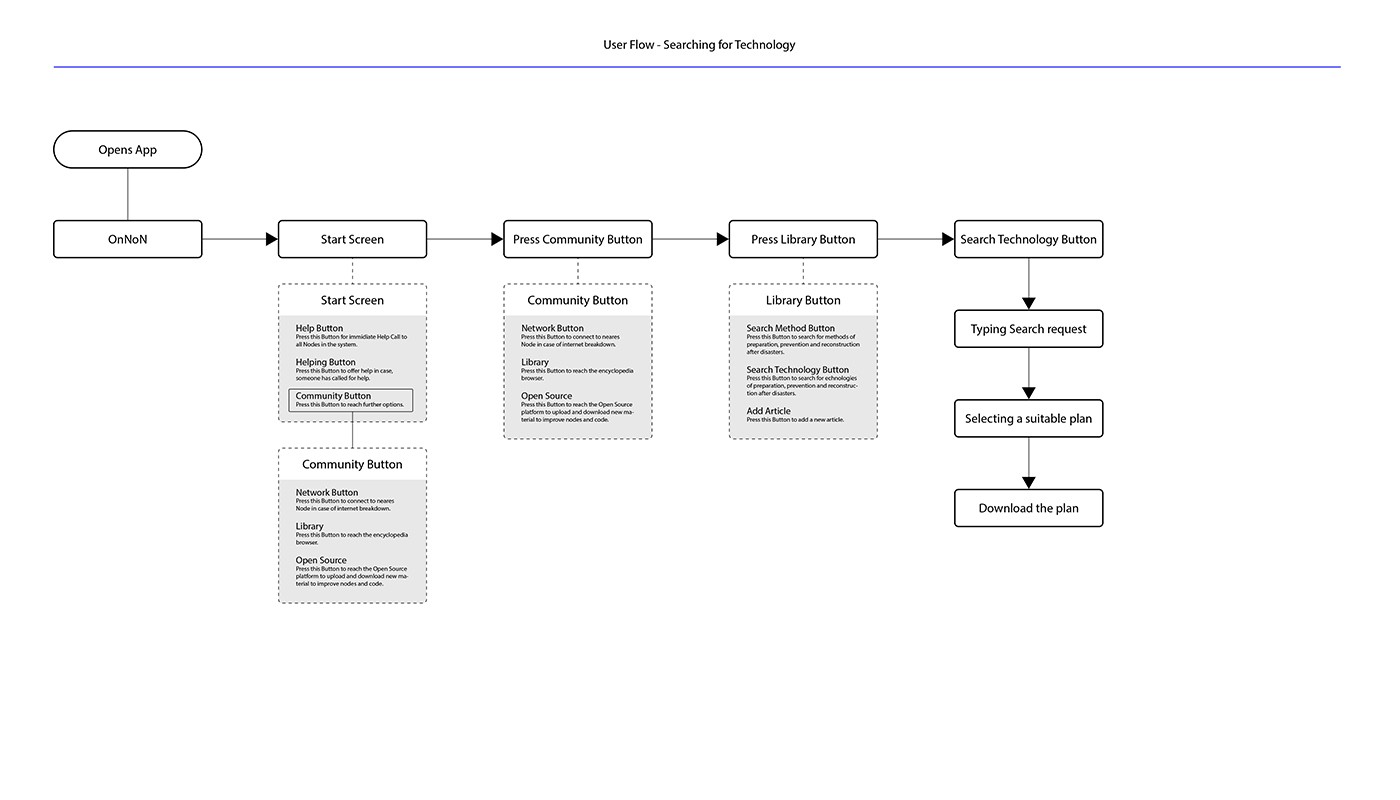

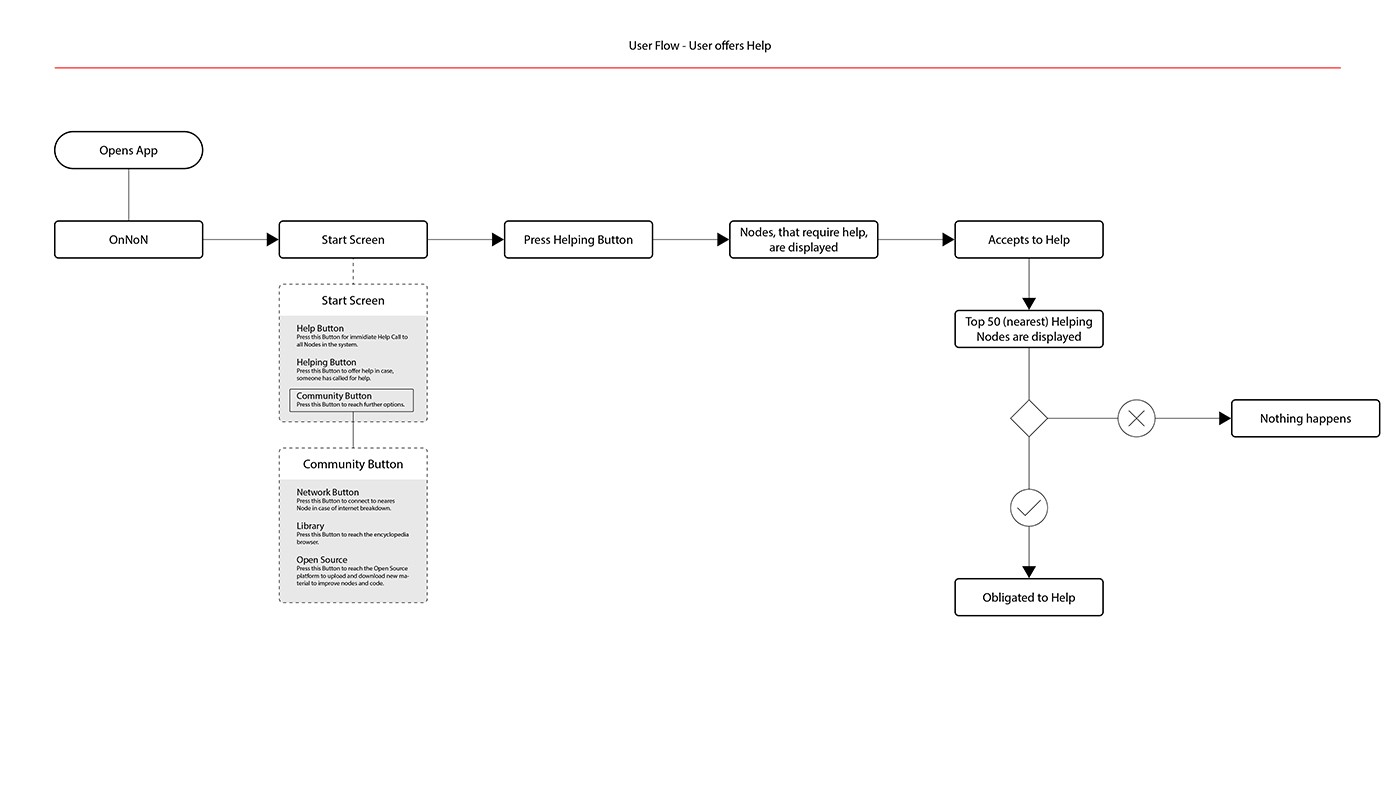

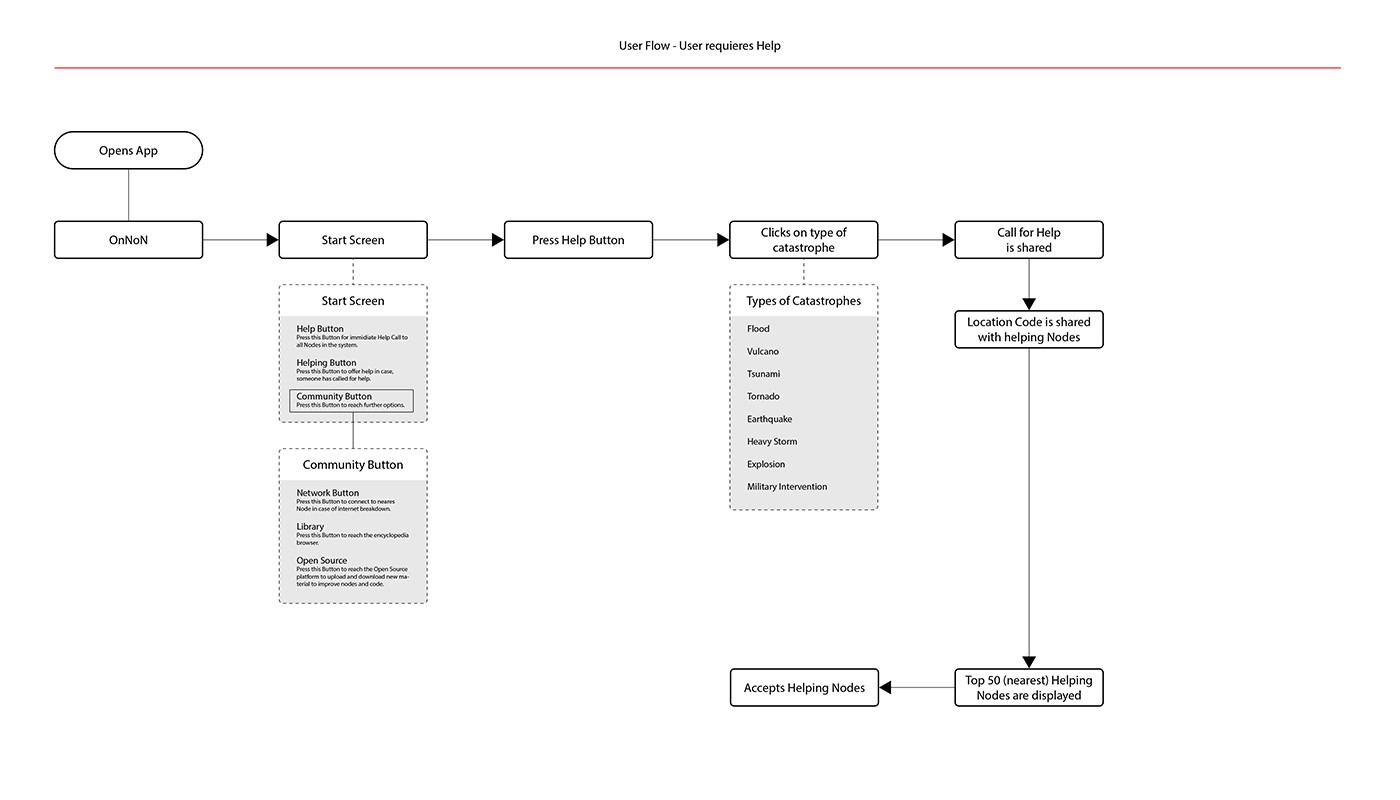

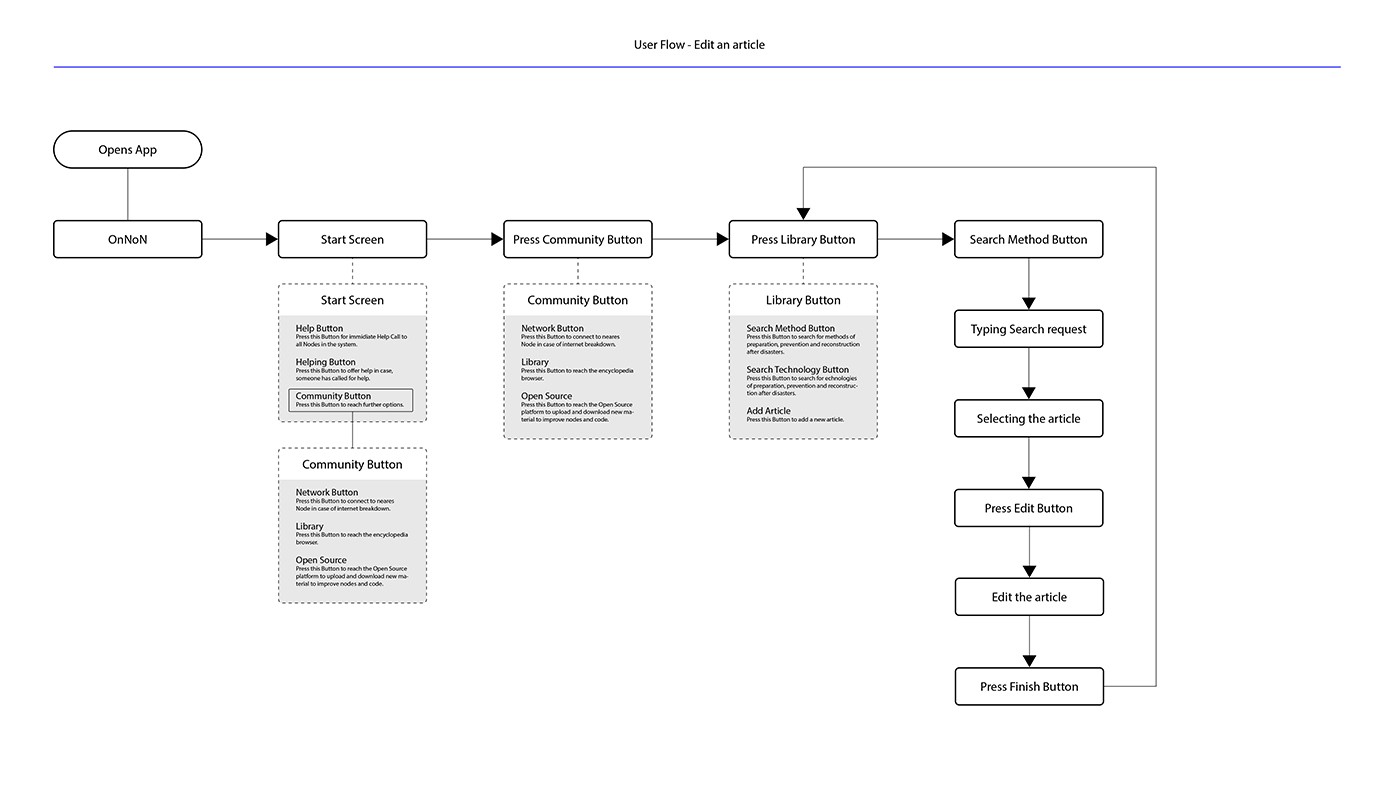

↘ User Flow Charts for different situations

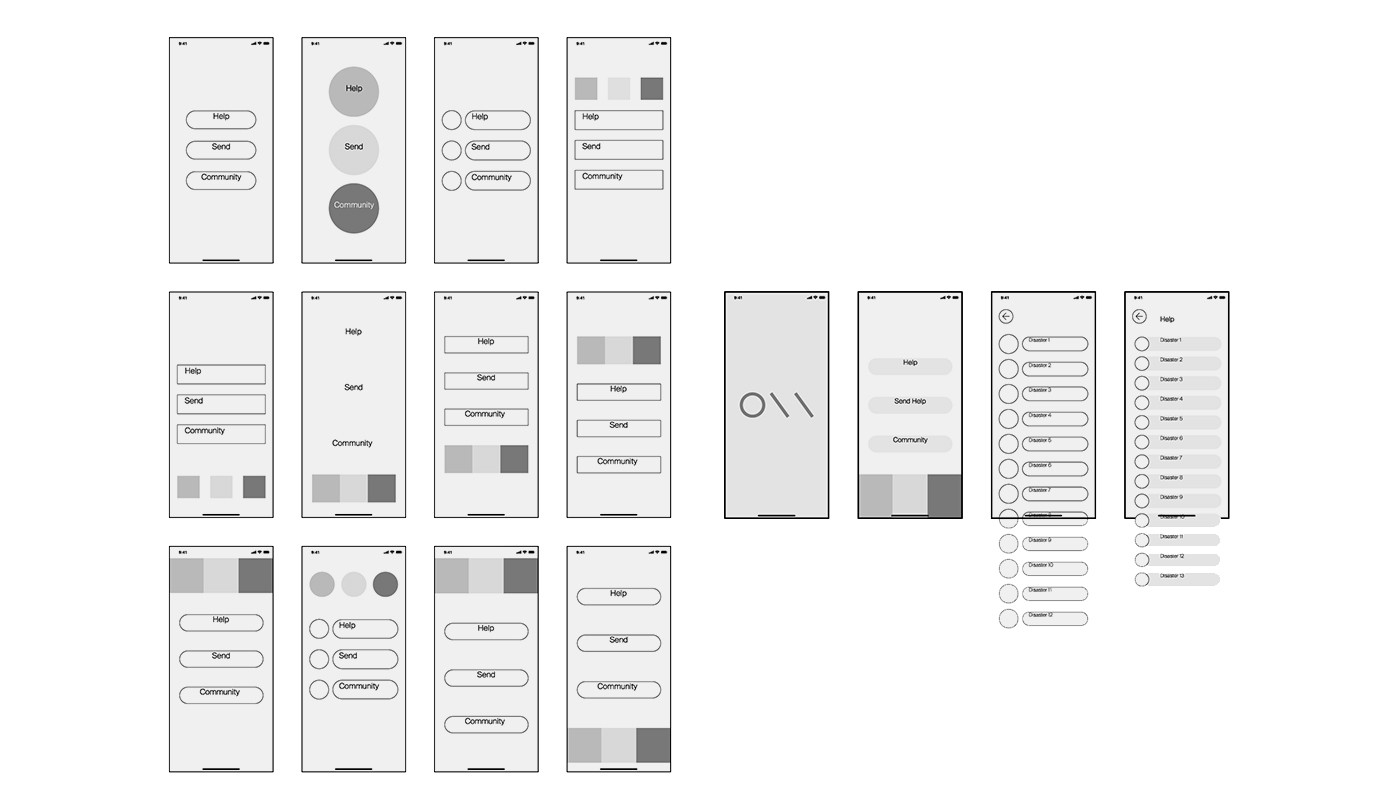

↘ Wireframing the user interface
↘ Wireframing the user interface

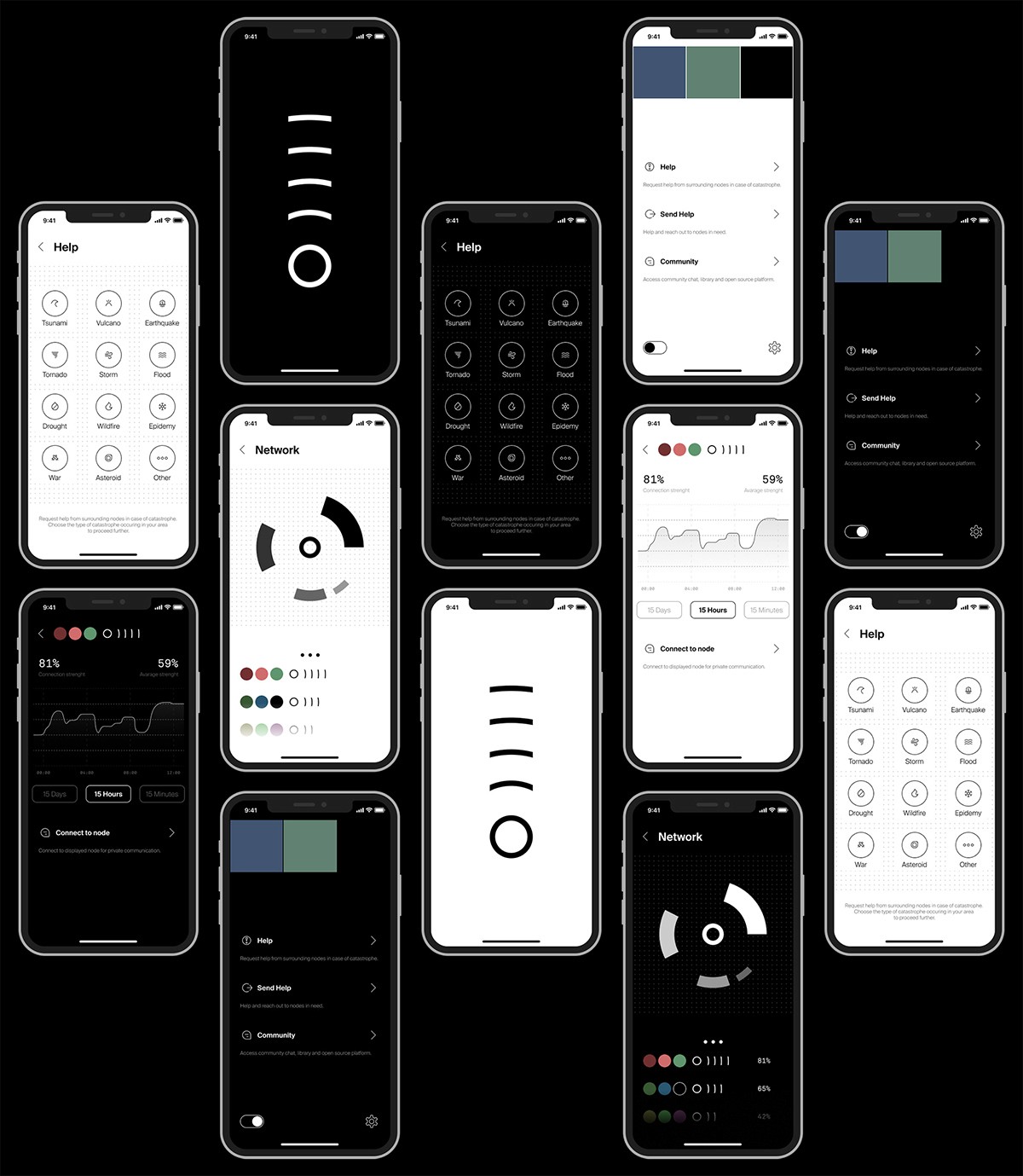

↘ High-Fidelity Prototype of the user interface
↘ High-Fidelity Prototype of the user interface
Communication Node
Communication Node
This element has the task of maintaining a communication network that could be lost in the event of a disaster. A steady communication network for the rapid transmission of information can become vital, ensuring organization of aid and resources.
This element has the task of maintaining a communication network that could be lost in the event of a disaster. A steady communication network for the rapid transmission of information can become vital, ensuring organization of aid and resources.

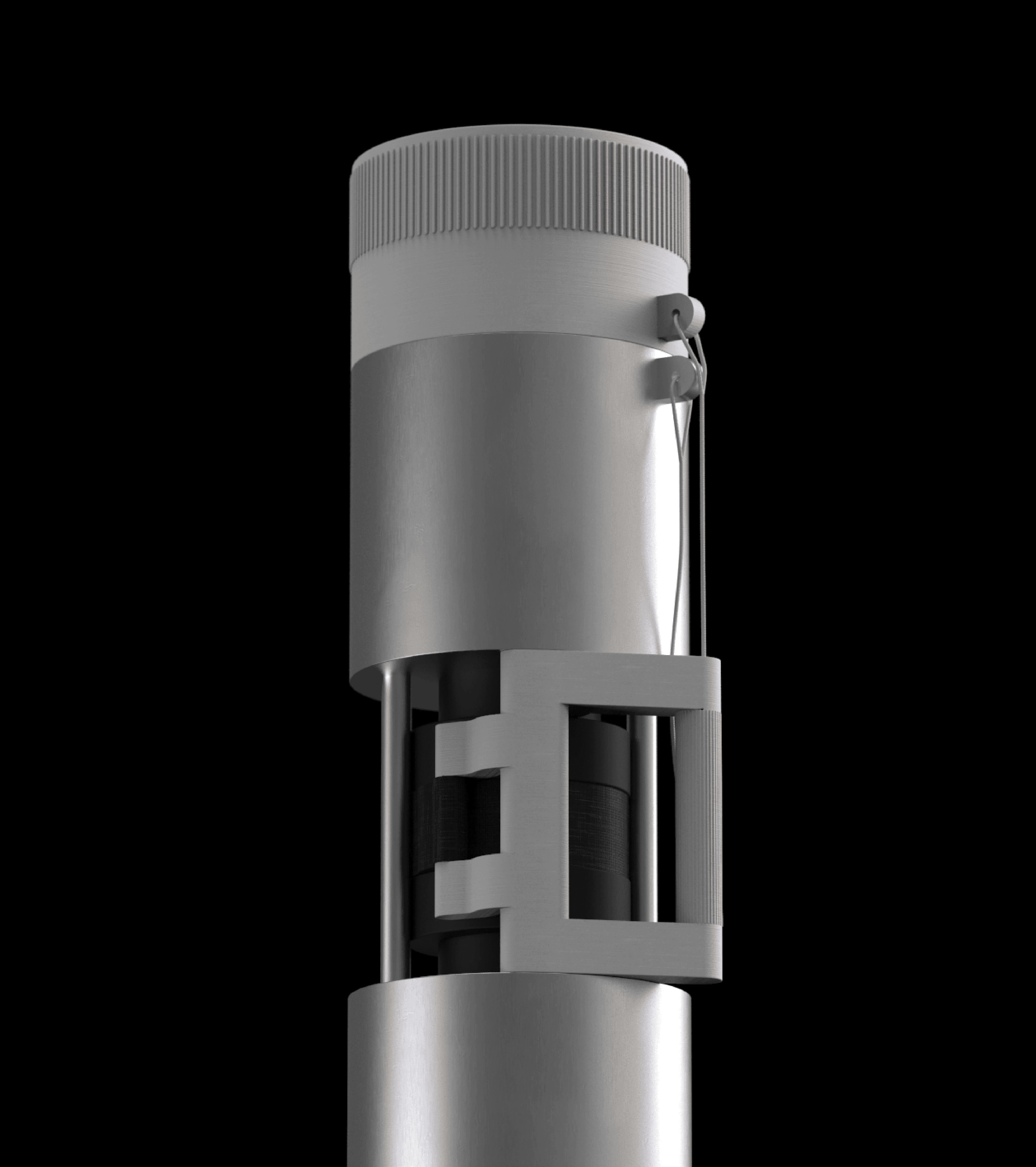

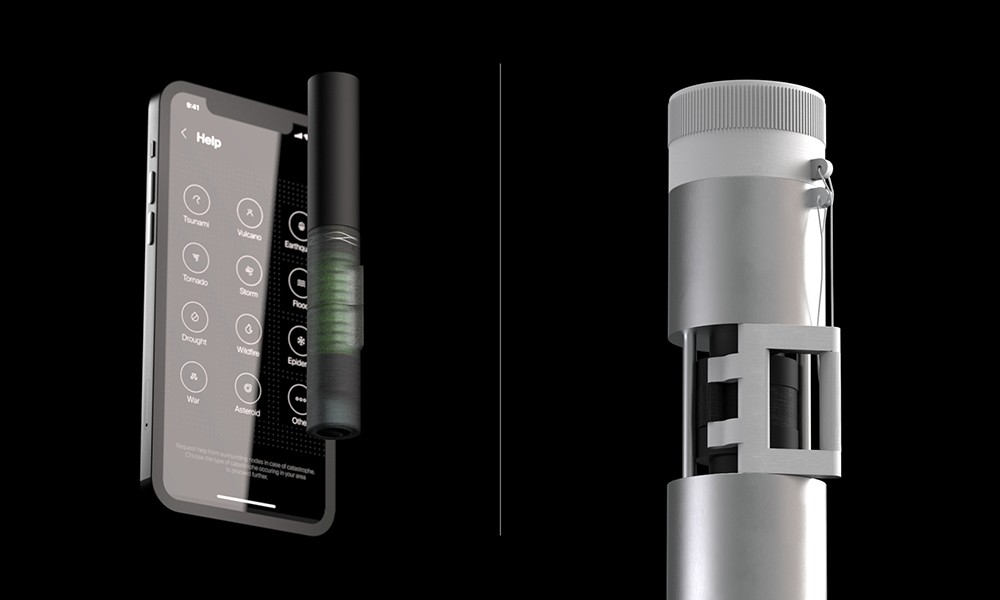

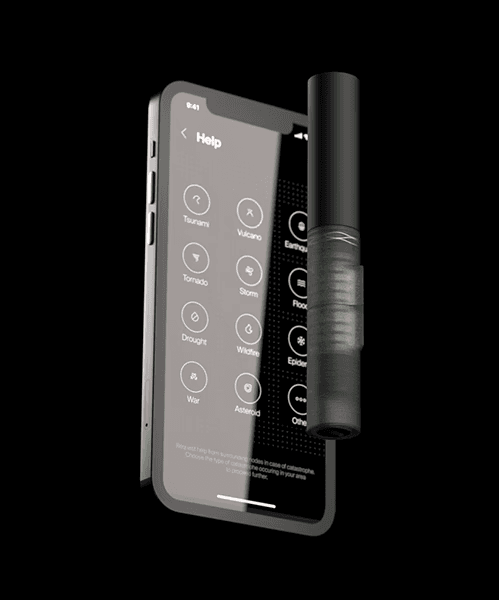

↘ UI concept + portable node // Expander Node

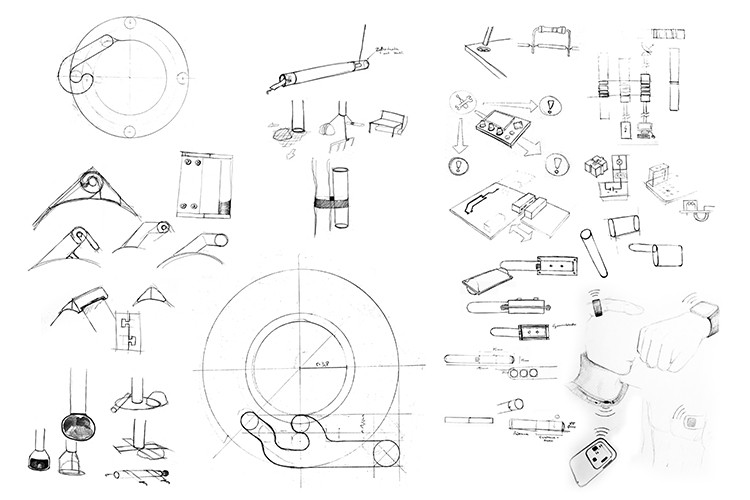

↘ Sketching for rapid ideation
↘ UI concept + portable node // Expander Node

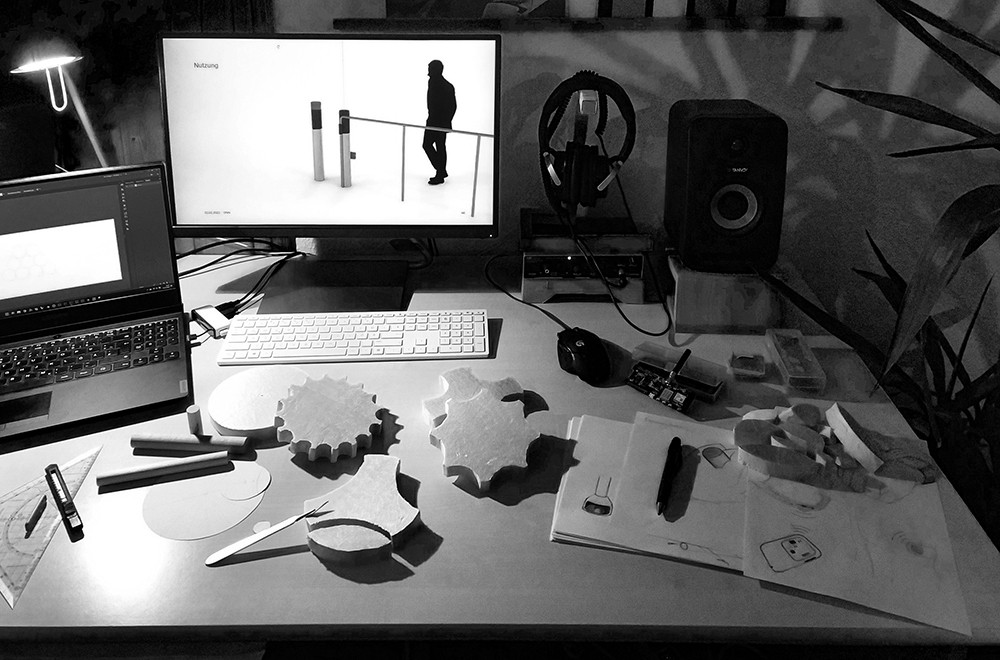

↘ Prototyping volumetric and ergonomic models
↘ UI concept + portable node // Expander Node
↘ Sketching for rapid ideation
WANT TO LEARN MORE?
WANT TO LEARN MORE?
WANT TO LEARN MORE?
WANT TO LEARN MORE?
↘ Digital platform and expander node installation in situ
